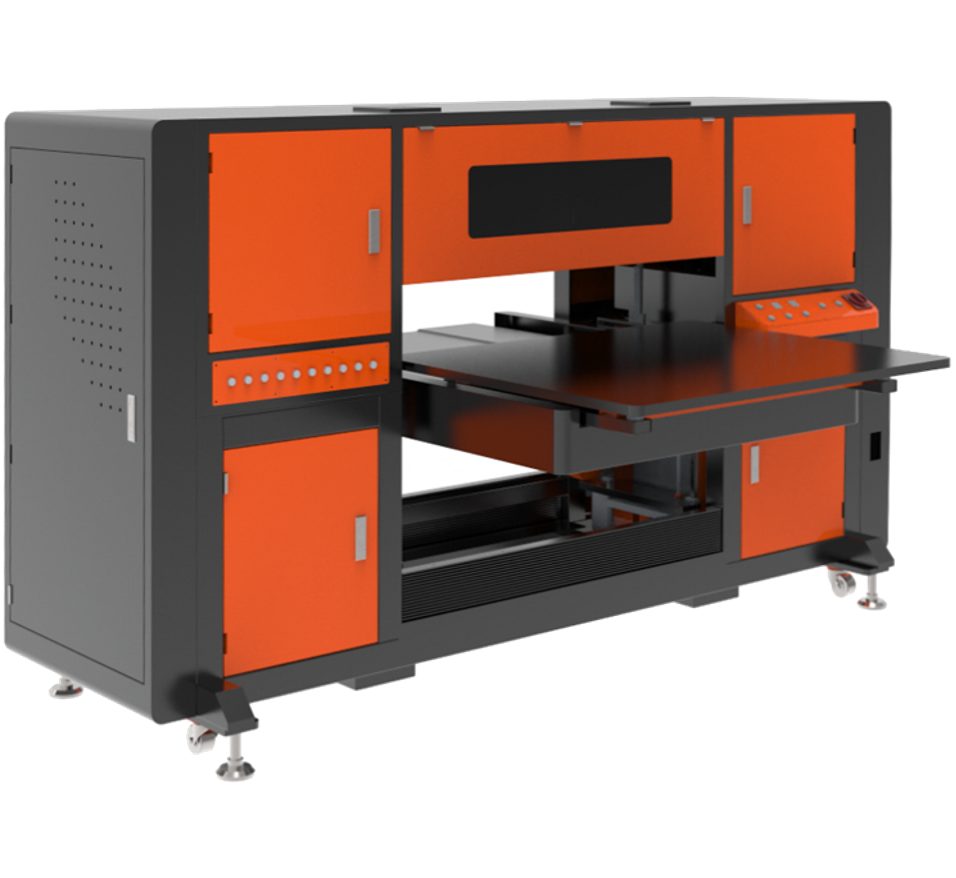

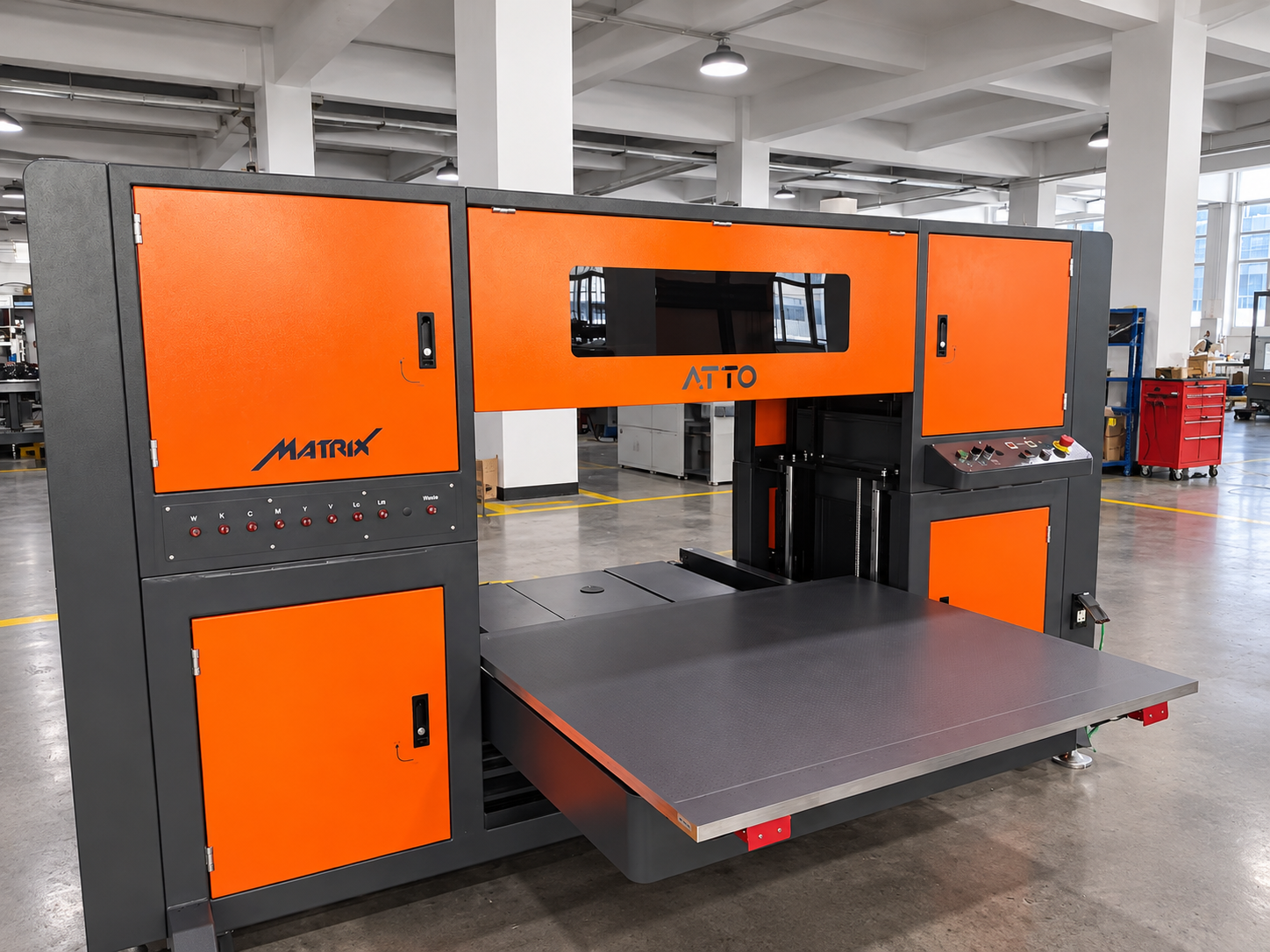

Matrix – Industrial Standard High Throw Flatbed
Oversized products, uneven surface. Built for production.
With a generous 1,200 × 900 mm print area and 500 mm vertical clearance, MATRIX goes beyond traditional flatbed printing to accommodate luggage, packaging, signage, and other three-dimensional products. Break through conventional printing limits with High-Throw Technology, expanding possibilities across a wider range of applications.
MATRIX - BUILT TO A HIGHER STANDARD
The Matrix UV Flatbed Printer redefines precision printing on flat and uneven surfaces. Designed for demanding industrial and promotional applications, it excels at transferring vibrant, detailed graphics onto different materials and objects with curved profiles.
Its advanced print system maintains accuracy even at extended jetting distances, enabling smooth coverage and crisp detail on items with up to 25% curvature. Optional dual-row printhead configuration for even faster printing speed. The expansive 47”x35” print platform accommodates both large pieces and multi-item production and the 20-inch drop table supports consistent results on taller or contoured products—making the Matrix-1290 versatile solution for advanced flatbed and dimensional printing.
Highlight Features
• W/KC/MY/V Color; Optional Lc/Lm & Primer
• Regular, high and ultra-high-speed modes
• High-gap printing up to 20 mm / 0.8 inches
• Linear-servo carriage motion
• Front/rear and vertical servo-driven worktable
• Sectional-controlled vacuum worktable
• Automatic capping and cleaning system
• Fully enclosed for safer operation
Technical Specifications
| Color Configuration |
W/KC/MY/V Color; Optional Lc/Lm & Primer |
| Print Area | 47.2’’ x 35.4’’ (1200mm x 900mm) |
| Max Media Height | 20’’(500mm) |
| Printing Mode | Standard and High Throw
Regular, high and ultra-high-speed |
| Resolution | 720×1440 dpi/ 2160×2880 dpi |
| RIP Software | Flexi Print |
| File Formats | JPEG, TIFF, PDF, EPS |
| UV Method | LED-UV lamp with water cooling system |
