EZ-Plasma makes plasma easy!

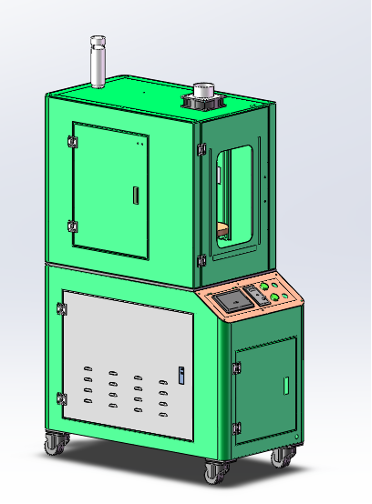

The EZ-Plasma Pre-Treatment Machine is specially designed for surface treatment of cylindrical and conical objects such as bottles and cups before printing. It creates an ideal printing condition for UV direct printing on plastic and metals without the need for additional adhesion promoters.
The EZ-Plasma can be integrated into customers’ existing production lines to simplify processes and improve efficiency. The Easy Plasma is not only suitable for UV digital inkjet printing, but also for various common printing processes, such as screen printing and pad printing.
Products Categories
Get A Free Quote
FEATURES
- Increase surface energy to improve adhesion for printing
- Universal tooling for bottles and cups. Tooling with vacuum and silicone coating
- Tooling rotation when treating, rotation driven by motor with speed adjustable
- Servo-driven, height-adjustable plasma gun
- Electrostatic dust removal device
- Waste air exhausting system on the top
- Safety door with glass windows for easy observation of processing status
- PLC control, touch screen display
- Full CE Compliance can be requested
SPECIFICATIONS
| Technology | Plasma process technology |
| Type of Spray Gun | Atmospheric rotary spray gun |
| Plasma Head Diameter | 50/100 mm |
| Plasma Power | 1600 W |
| Maximum Processing Line Speed | 1400r/min |
| Shape | Cylindrical objects / Tapered objects |
| Object Size | Diameter: 40-220 mm ; Length: 0-300 mm ; |
| Power Supply | 220 V±10% (50/60 Hz, AC); 8 A; 1800 W |
| Compressed Air | 0.5 Mpa; Clean and dry |
|
Operational Environment |
Temperature: 16-28°C (61-82°F)
Humidity: 40-60% (Recommended) Altitude: up to 1000 m (3281 ft) |
| Dimensions (W × D × H) | 500 mm x 1000 mm x 1500 mm |
| Machine Weight | 200 kg |
| Treating speed | Up to 4 pcs/min |
